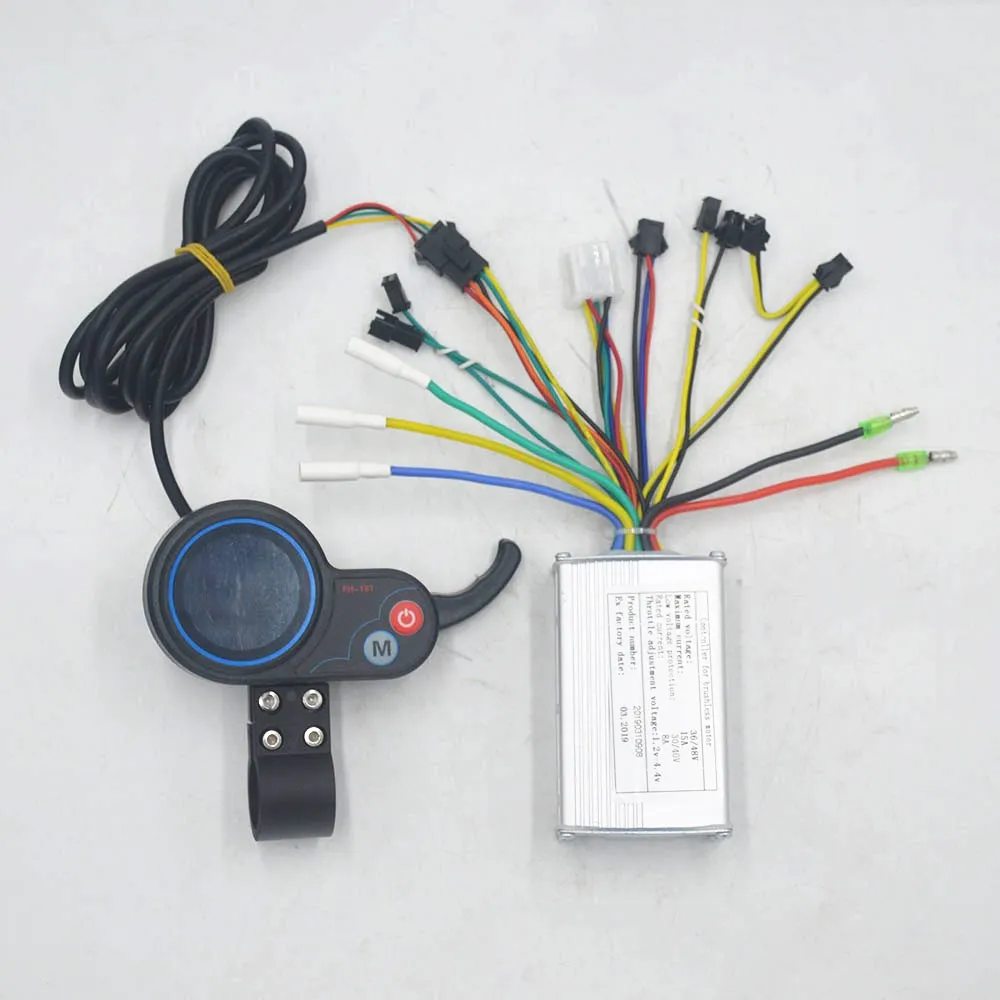

36V 48V 250W 350W electric bicycle/scooter controller with throttle LCD display speed for xiaomi scooter/e bike

White Recycled kraft box for jewelry necklace packaging with free design packaging boxes custom logo ---DH10026 Colorful printing kids toy packing kraft box Custom clothes dress paper packaging carton boxes for sale ---DH10072 Factory small jewelry packaging gift box cardboard drawer storage paper box with custom logo ---DH10096 Cheap custom paper packaging corrugated mailing box,CMYK printing Craft Paper cylinder packaging box ---DH10106 Private label paper board perfume box with die cutting eva foam insert,printed packaging cardboard boxes ---DH10112 Custom Glossy Lamination packaging gift box with ribbon closure chocolate candy boxes ---DH10126 Corrugated carton box packaging box for sweater carton box,Custom Made Model No Gift Packaging ---DH10146 Christmas cracker cardboard box packaging,burger stamp hamburger box packaging ---DH10152 CMYK Glossy Lamination Printing Handling packaging Custom honey bottle packaging box ---DH10172 Custom luxury paper drawer corrugated jewelry packaging gift box, Luxury rose packaging box with magnet closer ---DH10182 Wholesale Custom packaging cute cactus decoration Contact Lens Case/contact lens box with mirror ---DH10212 Kraft paper small packaging paper box handles with clear pvc window,Luxury jewelry ring box with sleeve packaging ---DH10226 Low cost flat pack corrugated kraft paper a gift box custom Packaging small cosmetic box ---DH10262 Quality Chinese Products Small Mail Paper Kraft Corrugated Paper Box,Phone case retail packaging gift box ---DH10282 Paper Cardboard Gift Box with Clear PVC Window,Fashion gifts boxes for packing watch and wristbands ---DH10292 Hotsale Single Bottle Paper Wine Box glass bottle packaging box Wholesale Print cardboard packaging ---DH10296 Custom Printed Folded Corrugated Cardboard Packaging Counter Display Box,Packaging for Compression Socks ---DH10316 Cheap price corrugated carton box packaging box,PVC window paper pillow shape packaging boxes for bra ---DH10322 UV Resistant Packaging Box With Multi lens film,Custom luxury rigid cardboard paper packaging candle box ---DH10362 custom cardboard box wholesale from shanghai packaging factory,UV Protected color box Packing baby music toy ---DH10392 Corrugated shipping box Paper carton box packaging custom logo and free sample Small cosmetic boxes ---DH10422 Pink paper perfume packaging box,Handmade luxury packaging box custom logo cheap cardboard gift box ---DH10426 Kraft Paper Cardboard Suitcase Box with Handle Custom Packing,Packaging Box For Phone Case ---DH10456 High class Customized collapsible paper packaging gift box,UV Resistant CMYK printing cigarette packaging ---DH10462 Custom Blister card packaging for mobile phone,Hot-Selling Cell Phone Case Plastic PVC Packaging Box ---DH5068 Custom Clear pvc clear blister packaging tray packing box,heat sealed blister packaging for usb flash drive ---DH5089 30pcs/lot Non-woven Folding Clothes Storage Box With Cover Debris Storage Box Multi-function Folding 30pcs/lot Non-woven Folding Clothes Storage Box With Cover Debris Storage Box Multi-function Folding Fast delivery Custom clear clamshell blister thermoforming pvc double blister packaging ---DH5098 Accept custom high quality hot sale clear plastic clamshell,PET blister pack suppliers ---DH5099 30pcs/lot Non-woven Folding Clothes Storage Box With Cover Debris Storage Box Multi-function Folding Thermoforming Cosmetic Blister Trays for Eye Mask,PET Material USB clamshell blister packaging ---DH5113 Superior Quality Magnet Customized Logo Printed Soap Packing Box,UV Protected Packaging Box with Handle ---DH10592 2018 AILA Lip Divider For Your 9 and 5 Drawers Makeup Storage Perfect Storage for ALL Sized Lip Products Tall Short. Plastic Storage Drawer Groceries storage box Clothes Storage Cabinet Children for bedroom Plastic cabinet storage box for toys DIY Plastic Storage Drawer Storage kids room storage Organizer With WheelsCar Cute toon Bear box for toys underwear organizer When the plastic wardrobe DIY Non-woven Closet Portable Storage plastic cabinet Multifunction Dustproof Moistureproof Furniture 100 pieces Popular Funny Hot sale Lovely Cute Cartoon Rose Red/Green/Blue/Coffee Bird Suction Tooth Brush Holder storage box

Brand Name MEIANDIAN

Type Controller

Voltage 24V/36V/48V

Rated Power 350W/250W

Controller style Brushless

Display Yes

Use Mini scooter,electrice scooter,electric

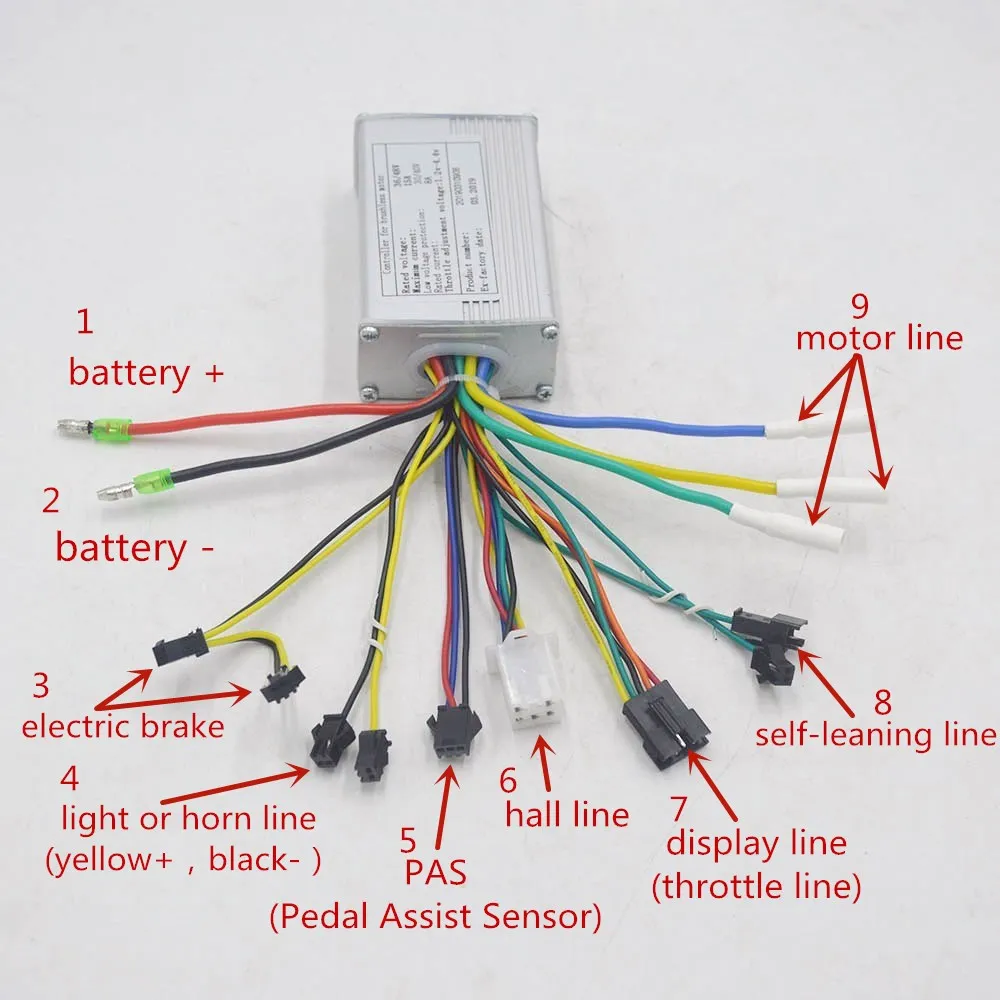

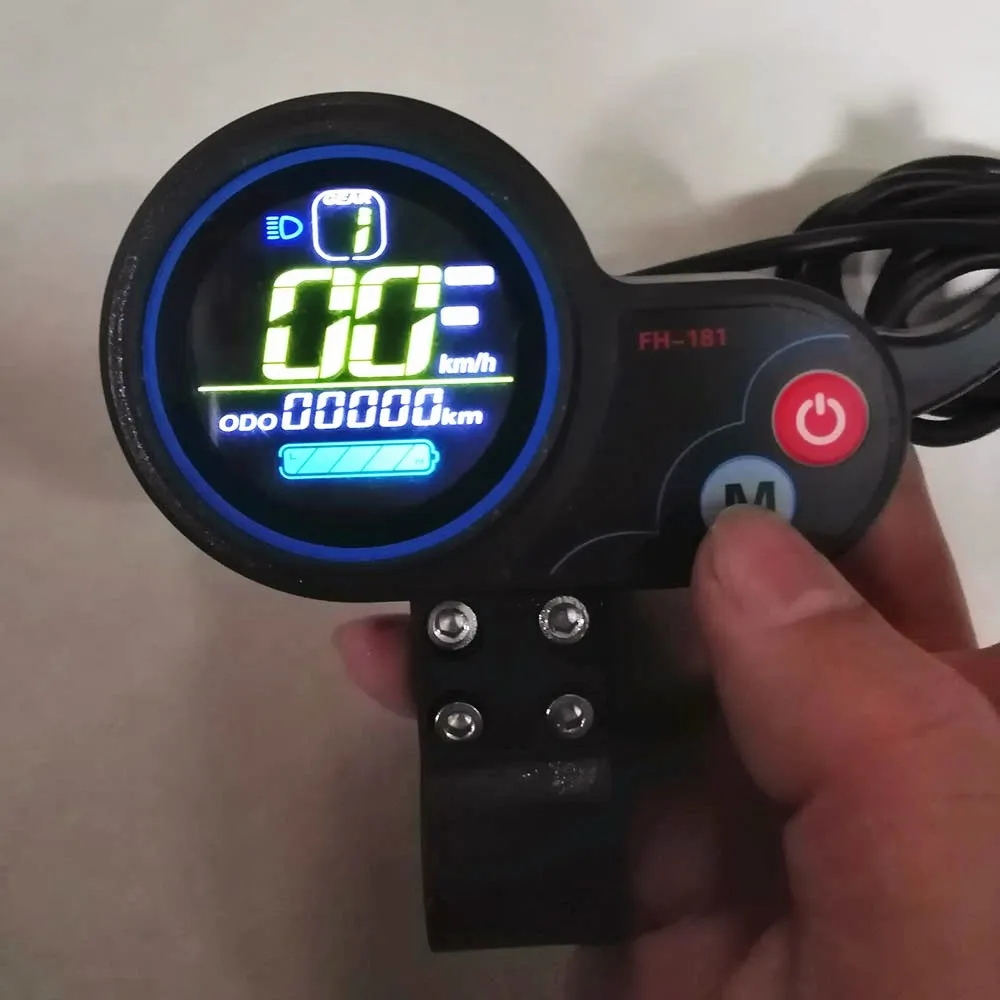

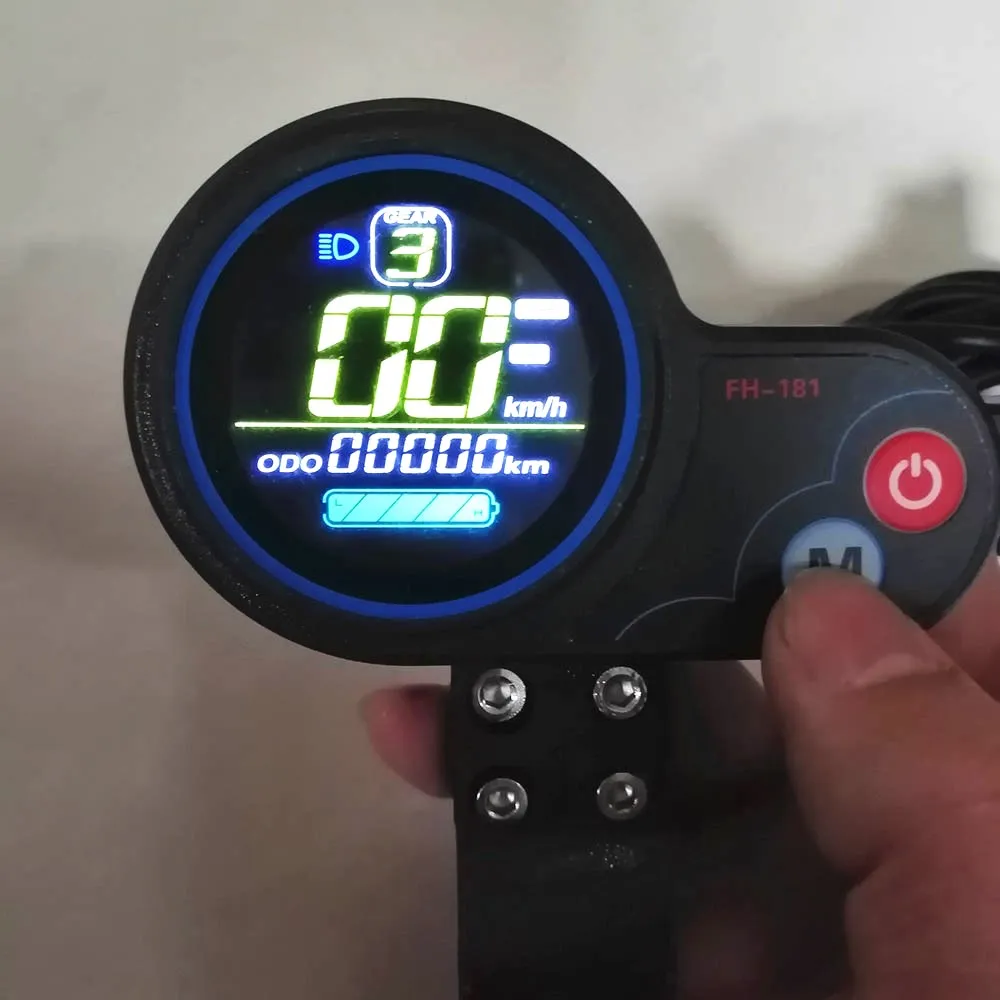

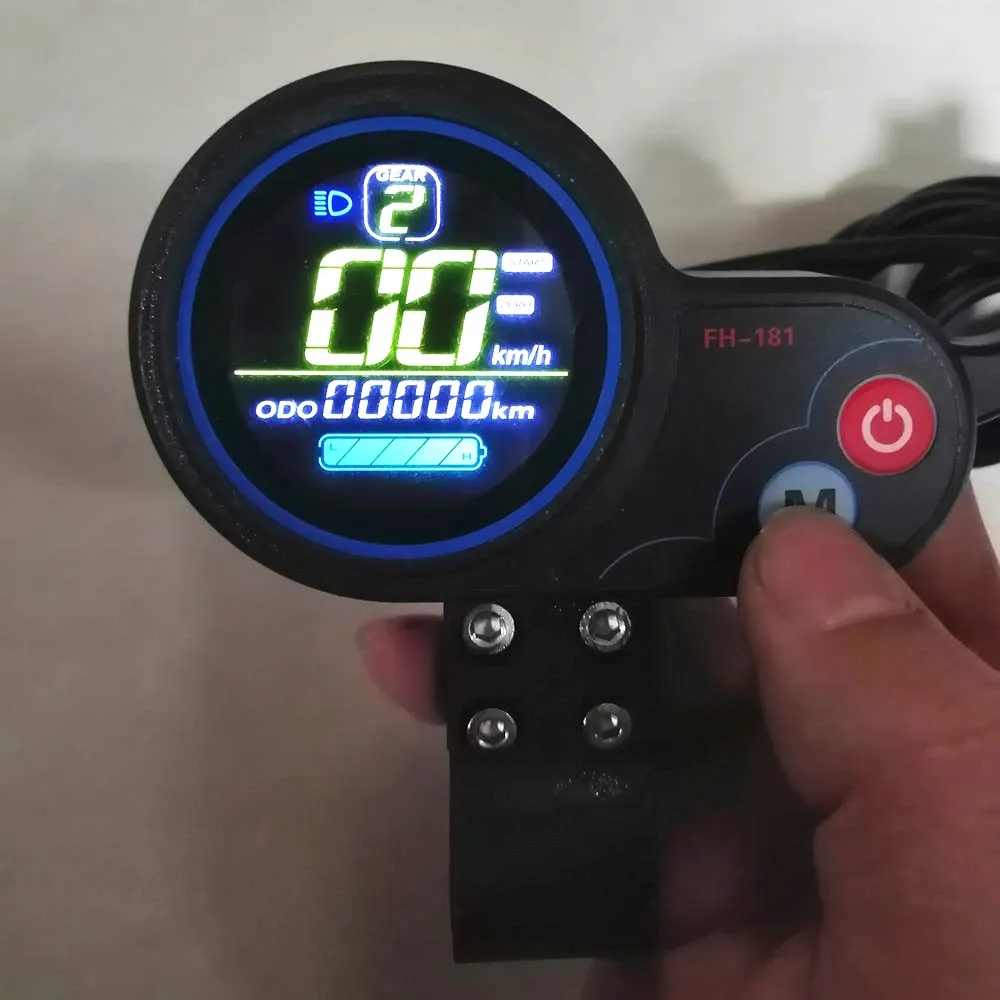

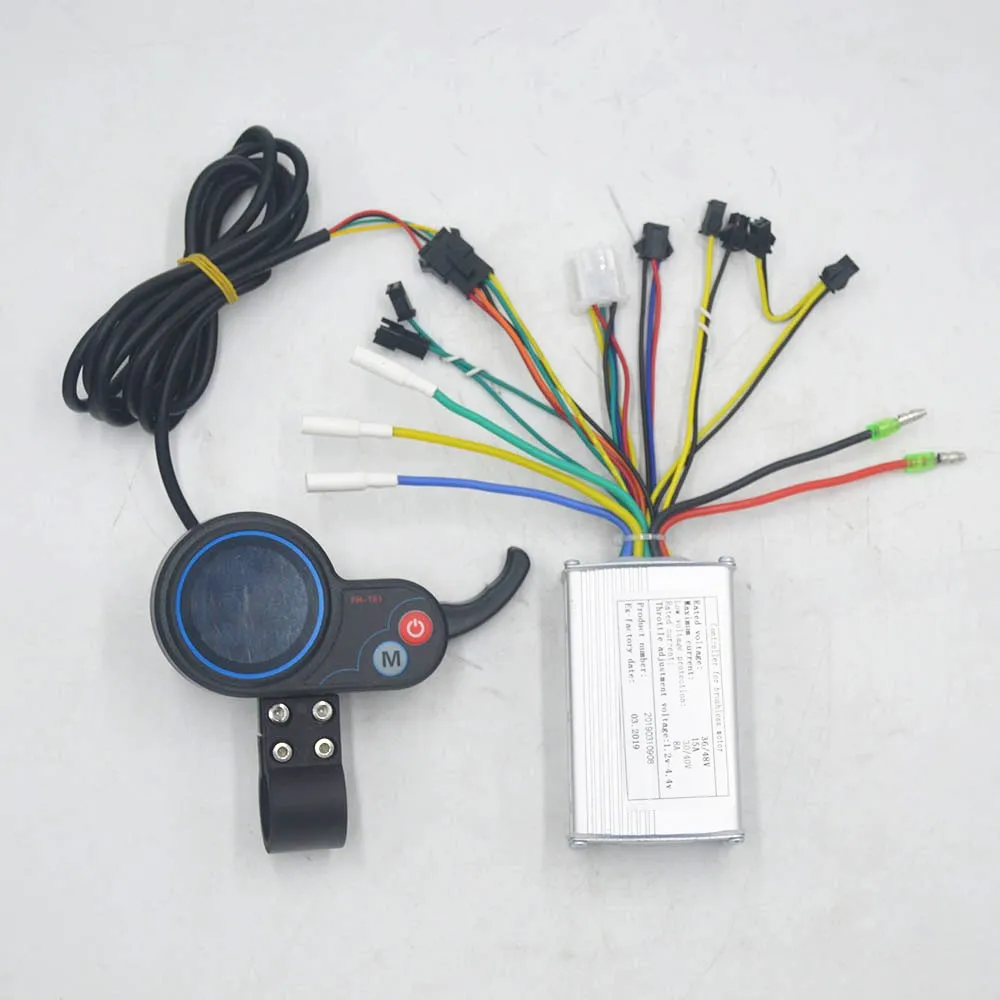

ebike controller kit 250W 350W 24V/36V/48V DC Mode escooter Brushless Motor Controller with electric bike LCD Product Details: Motor style: Brushless Weight:700g Rated voltage: 24V 36V 48V Rated power:250W 350W Low-Voltage Protection: 24V:19+-0.5V 36V:29+-0.5V 48V:39+-0.5V Current:15A(350W) , 13A (250W) Current Limite: 250W:13A+-1A 350W:15A+-1A Use for: electrice scooter,Electrci Tricycle,ebike,e-scooter,e-car,e-golf car etc Package include: 1pcs*controller with LCD screen(throttle) Screen Show: 1. The current speed is displayed 2. Battery charge (voltage) display 3. Accumulated mileage display 4. Single mileage display 5. Headlight display 一、 Working voltage: 24V/36V/48V(Three voltages can be set） 二、 1. Red line: positive input of power supply 2. Black line: negative power supply 3. Blue line: controller electric door lock 4. Green Line: Communication Receive 5. Yellow line: communication launch 三、 1. Display function speed display, power indicator, fault prompt, headlight indication, cruise indication, gear indication, total mileage, single mileage, real-time voltage, running current, running time, startup mode, etc. 2. Multi-function display area Total mileage ODO, single mileage TRIP, real-time voltage V, operating current A, running time TIME, fault code E 3. Fault status display area E, when the ! symbol is flashing, short press the ON/OFF key to adjust the display interface to the E interface. The corresponding number under the interface represents the corresponding fault content. The specific status is as follows: ERRO 1: Motor failure ERRO 2: Turning fault ERRO 3: Controller failure ERRO 4: Power brake ERRO 5: Undervoltage protection ERRO 6: Communication failure, the instrument does not receive the output of the controller ERRO 7: Communication failure, the controller does not receive the output of the meter 4. Short press MODE button, the gear position will cycle, the higher the gear position, the faster the speed. 6. After the motor is running, maintain the speed control handle for 5 seconds. The cruise symbol lights up. After the handle is released, the motor maintains the original speed. Brake or dial the speed control handle again and return it to the cruise state. 7. Non-zero start NON symbol is lit Zero start ZERO symbol is lit 8. When a data cable is connected to the USB interface of the meter and draws more than 100 mA from it, the USB icon lights up. If the icon is flashing, the load is in intermittent charging or the load current exceeds 500 mA. The USB interface automatically turns on the protection mode. 9.Press and hold two buttons at the same time to enter the settings: P03: Voltage level: 24V, 36V, 48V P06: Wheel diameter: unit, inch; accuracy: 0.1; P07: Number of speed magnets: Range: 1-100; P09: zero start, non-zero start setting, 0: zero start; 1: non-zero start; P15: Motor drive signal percentage setting (to achieve PO8 speed limit function) Full speed is set to 100 P16: Meter real-time cruise function 1 has this function 0 No such function P99: One-click recovery function (Press the MODE button for 5-6 seconds in the P99 parameter setting interface to restore all the parameters to the initial setting of the first boot) ODO: ODO is cleared (in the ODO parameter setting interface, press the MODE button for a short time and then press and hold for 5M-6 seconds until the number is zero.) battery + battery – electric brake light or horn line(yellow+, black-) PAS(pedal assist sensor) Hall line display line(throttle line) self-learning line motor line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.Contact the hall line 4.Contact the display line 5.Docking the two self-learning lines, turn on the power supply of the electric vehicle, twist display throttle, the motor will forward or reverse. (Separate the self-learning line when the forward transmission can be. if the reverse, Separate the self-learning line. then Docking the self-learning line again, Separate the self-learning line when the forward transmission can be.) 6.Other functions can be connected as needed.)
