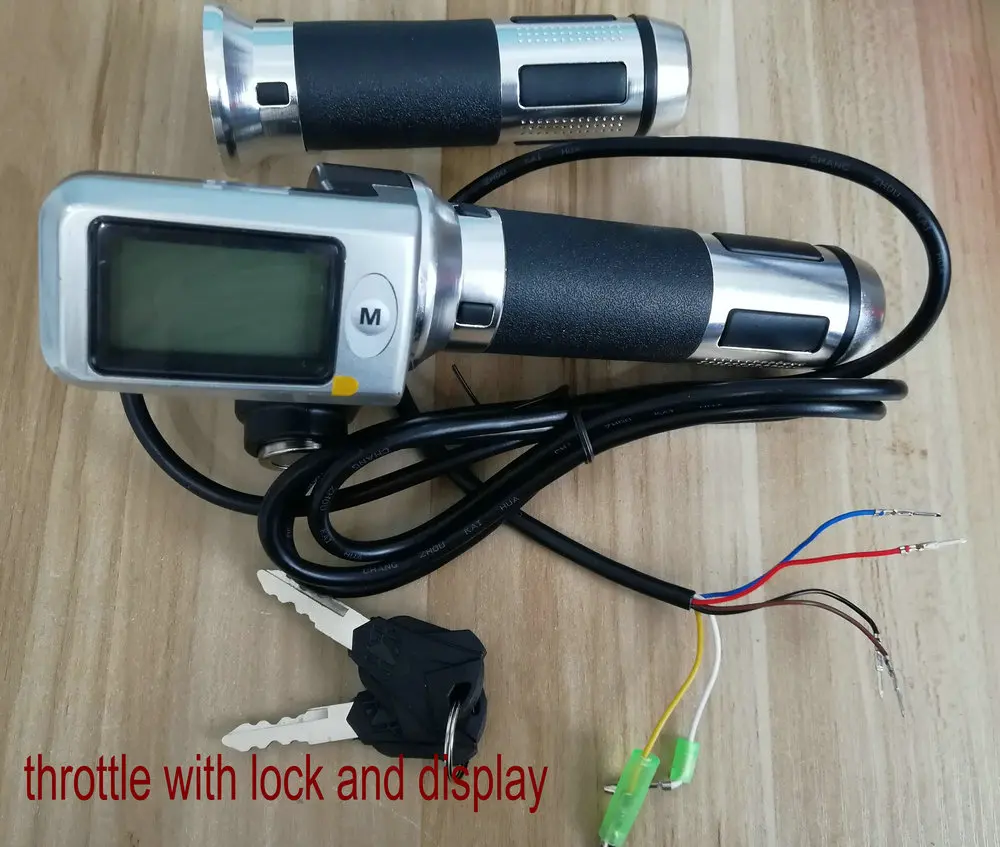

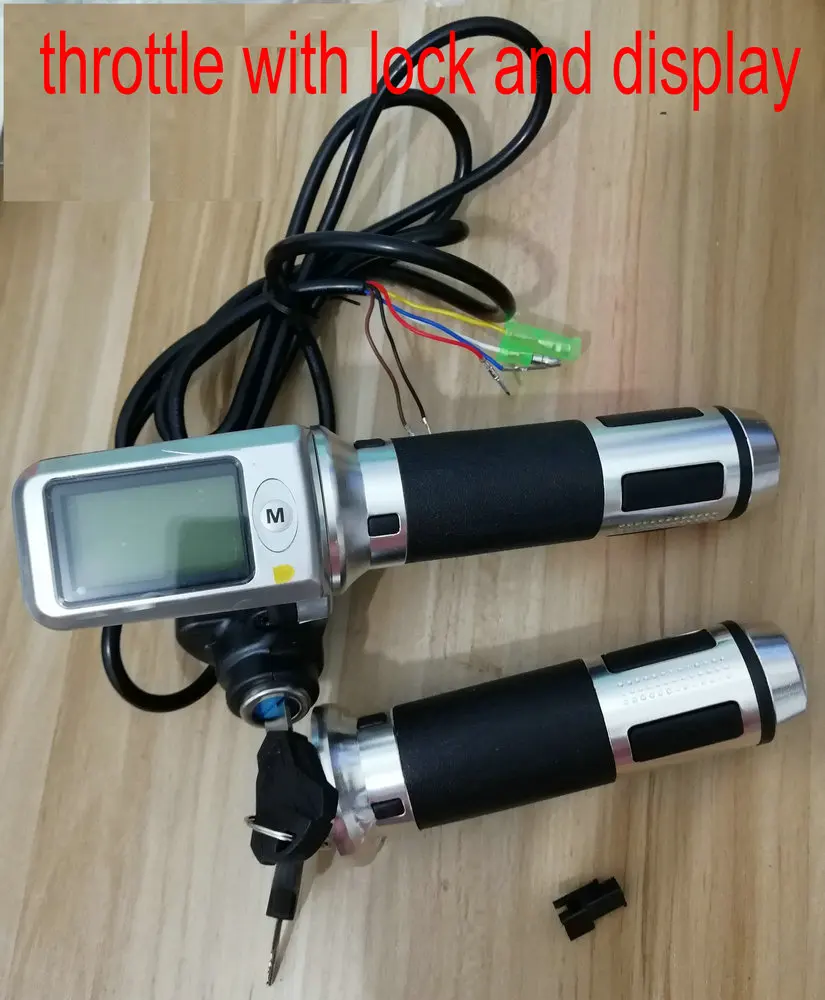

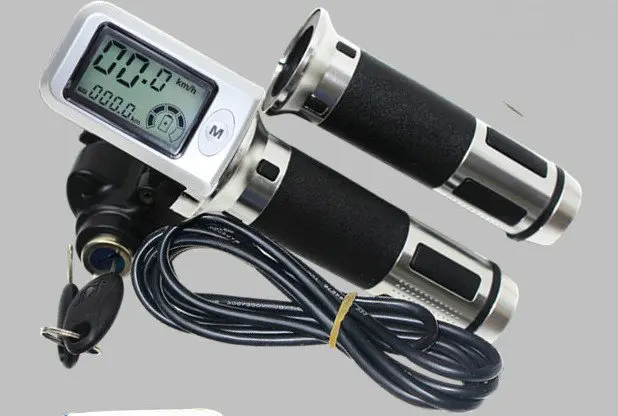

free shipping electric bicycle throttle handle ,bicycle accessories our belief is service ,foremost quality first ,credit first. 1.pictures of product twist throttle rolling handlebar for electric bike scooter tricycle MTB 36v48v60v with lock/key/cruise&speed battery indicator materials :blue lcd display,+rubber grips+aluminum shell grips, it indicate speed battery level single trip odometer press M button you can see the odometer and battery voltage wire length 1.65m see bellow is size setting of display press M button and at same time open power lock, now display lights and numbers shines, and press m button you will can set the display . short press M button you can switch the setting item, long press it you can set the data bellow p01=voltage, 36v,48v,60v, default setting 48v, p02=speed ratio=0.2-1.5, default setting =1, real speed / current speed is the ratio u should set, for 36V bike when phase wire voltage is 18V , default setting speed =30km/h for48V bike when phase wire voltage is24V , default setting speed =35km/h for60V bike when phase wire voltage is30V , default setting speed =40km/h p03=range ratio=1-1.3, default setting =1 p04=speed testing mode, 1=VOL, phase voltage speed testing, , 2=hall, hall speed testing, default setting it is 1 if phase wire voltage signal, the rim and magnetic poles setting will not work. p05= rim size , 8inch, 10, 14,16,18,20,22,24,26,28,29inch(can work with phase voltage speed testing), default setting 14inch, p06= magnetics poles number (if motor with external speed testing hall built outside, it =1, means only has single piece magnetic poles, usually it is 1-6 if motor has speed testing hall built inside, now it means magnetic poles pieces numbers. it is 10-30pairs, it motor takes phase wire voltage speed testing, this will not work) default setting =1 , press button will add one p07, mile/h or km/h, 1=metric, 2=mile, default setting it =1 or it is P07 battery voltage ratio P08 =0, 3 gears function is forbidden, p08=1 means 3 gears available and power on it is gear one, short press M button will exchange gears, long press M button will switch betteen single trip/odo, and battery voltage, p08=2 means power on it is gear 2. p08=3 means power on it is gear 3. P09 accumulated odo clear to zero , long press button >3seconds, odo shines, then short press>10times, the odo will be cleared to zero, P10 mile/km exchange, 1=km, 2=mile, different version of goods has different setting , please contact sales peron. long press M button for 3 seconds you can confirm and store this data that you have set, and switch to next. repower display again you will can use new setting, it has two model customer can choose from lock model or cruise switch model wiring instruction for lock model, black blue red--throttle wire -connect with controller throttle wire, (red is +5v, black is negative, blue is throttle signal wire, ) yellow+white=eletric switch wire yellow --electric switch wire input positive white --throttle output positive brown --speed wire --connect with any phase wire of motor phase wire this wire will supply signal for display, if donot connect, display will not indicate speed and odometer. (this throttle takes phase voltage signal , ) for cruise model yellow +white is cruise wire, green wire is positive, other wires are the same, attention please: 1. for all the display which takes phase wire voltage signal, the speed indication will have little deviation, 2. if your motor is brushless gear motor, when sliding the speed indication may be zero. if brushless gearless motor, this phenomemon will not happen, we may have different grips please be noted this throttle has different version price is for sample , for quantity order please leave message, we will give big discount 2.Shipment information a.Almost all goods (usually under 1kg) are free shipping by China Post/HK post b.Any ask for fast delivery like DHL, EMS, FEDEX, please Contact US c.Allgoods are well-packed with standard package, Any Goods Sent Will have a TRACKING NO. d.Note if your order weight is over2KG, we will send you byDHL,more fast and will be with an extra charge. 3.About PAYMENT a.Payment is usually confirmed within 24 hours by Ali express b.we also accept bywesternunion. 4.About POLICY a.All our buyers would leave a good judgement after receiving goods since your satisfaction is our best gain b.If you are not satisfied with our goods, we would refund you under no condition c.All items will be strictly tested before shipping! 5.WORKSHOP 6.Employee training Packaging Details
